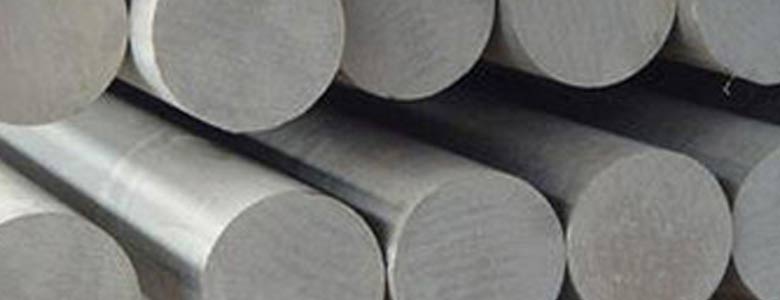

6101 (UNS a96101) is an aluminum bar containing a heat treatable wrought alloy best suited for applications involving moderate strength and maximum electrical conductivity.
Available shapes: Flats| Weight % | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | B | Each | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Minimum | 0.30 | 0.35 | |||||||||
| Maximum | 0.70 | 0.50 | 0.10 | 0.03 | 0.80 | 0.03 | 0.10 | - | 0.06 | 0.03 | 0.10 |
| Temper | Tensile | Hardness | ||||
|---|---|---|---|---|---|---|
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T6 | 29 | 200 | 25 | 172 | 15 | 71 |
| T61 | 15 | 103 | 8 | 55 | ||
